ASTM D4956 Type IV HIP High Intensity Prismatic Reflective Sheeting with 10 Years Life Span

Name: ASTM D4956 Type IV HIP High Intensity Prismatic Reflective Sheeting with 10 Years Life Span
Brand: Anhui Lu Zheng Tong New Material Technology Co., Ltd.
SKU: LZT9400
Availability: InStock

Marchio:	LU
Numero di modello:	LZT9400
MOQ:	1 rotolo
prezzo:	Negoziabile
Condizioni di pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacità di approvvigionamento:	10.000 rotoli/mese

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Articolo del prodotto:

Fogli riflettenti prismatici

Tipo:

Microprismatico

Durata:

10 anni

Materiale principale:

PMMA

Adesivo:

PSA di alta qualità

Intervallo di temperatura operativa:

Da -40°C a +80°C

Misurare:

1.22m (4ft) * 45.72m (150ft)

Spessore:

Tipicamente da 0,2 mm a 0,3 mm

solvente di eco:

Compatibile

Materiale di supporto:

Pellicola in PET (polietilene tereftalato).

Tipo adesivo:

Adesivo sensibile alla pressione

Imballaggi particolari:

1 rotolo/cartone

Capacità di alimentazione:

10.000 rotoli/mese

Evidenziare:

10 Years Life Span Prismatic Reflective Sheeting

EN12899 Class RA2 HIP Reflective Sheeting

ASTM D4956 Type IV Microprismatic Reflective Sheeting

Descrizione del prodotto

HIP High Intensity Prismatic Reflective Sheeting

Service Life	10 years
Type of adhesive	Pressure-sensitive Adhesive(PSA)
Reflective Technology	Micro prismatic
Imaging Method	Digital Print/ Screen Print/Die Cut
Specifications Met	EN12899 Class RA2/ASTM D4956 Type IV
Color	White/Yellow/Red/Green/Blue/Orange/Brown/Lime Green Yellow/Fluorescent Yellow-green
Feasible Operating Temperature	18°C~28°C
Specification	1.22 x 45.72m/roll (48in x 50yd) or customized
Main Applications	Highway road Sign/Traffic Signs

HIP Reflective Sheeting series delivers premium performance for critical traffic control and highway signage applications. Engineered with advanced micro-prismatic retroreflective technology, this sheeting provides powerful long-range return brightness that significantly improves sign recognition and driver response during low-light and nighttime conditions.

Designed for a service life of 10 years, HIP Reflective Sheeting maintains excellent optical performance and color stability over extended outdoor exposure, minimizing maintenance and replacement costs for road authorities and sign manufacturers.

Key Features & Benefits

Advanced Technology

Micro-prismatic retroreflective structure provides higher luminance compared to traditional glass-bead materials

Certified Performance

Meets EN12899 Class RA2 and ASTM D4956 Type IV specifications for highway signage

Durable Construction

10-year service life with excellent color stability and weather resistance

Easy Installation

Pressure-sensitive adhesive bonds securely to metal, painted and plastic substrates

Applications

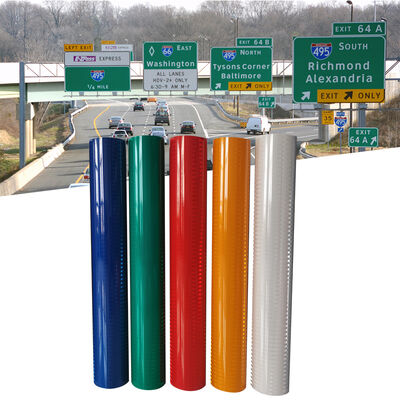

Highway road signs and panels
Work zone signage and safety markers
Regulatory and warning traffic signs
Directional signage
Vertically exposed delineators

Fabrication & Customization

Supports multiple imaging and fabrication methods including digital printing, screen printing, and die cutting. Available in a wide color palette including white, yellow, red, green, blue, orange, brown, lime green yellow, and fluorescent yellow-green to meet regulatory requirements and enhance both daytime conspicuity and nighttime visibility.

Product Specifications

Standard Roll Dimensions: 1.22 x 45.72 m (48 in x 50 yd)
Operating Temperature Range: -40°C to +80°C

Custom Sizes: Available to suit specific production workflows

About LU Reflective Sheeting Manufacturers

Since 1998, Anhui Lu Zheng Tong New Material Technology Co., Ltd. has specialized in R&D, production, sales and service of reflective materials and safety products. LU brand products include reflective sheeting, vehicle reflective tapes, marine SOLAS reflective tapes, photoluminescent films, glow in the dark tapes, and reflective traffic signs.

With ISO 9001, 3C, E-mark ECE104, DOT-C2, Intertek certifications and over 20+ patents, LU products are exported worldwide. The 13,000 m² production base features automatic production lines and a complete quality inspection system to ensure excellent quality and stable production capacity.

Technical Support & Services

We provide comprehensive technical support including installation guidance, application recommendations, performance consultation, product testing, customization support, and professional training to meet specific project requirements.

Packing & Shipping

Packaging

Each roll packed in sturdy cardboard carton
Protective plastic wrapping prevents scratches and transit damage
Custom packaging services available

Shipping

Shipped via ground transportation
Shipping cost calculated based on destination and weight
Tracking information provided after dispatch
